Simple Operation Oilfield Sucker Rods With Thin Wall Barrel For Oil Production

Name: Simple Operation Oilfield Sucker Rods With Thin Wall Barrel For Oil Production
Brand: Zhongshi
Price: 1 USD

China Simple Operation Oilfield Sucker Rods With Thin Wall Barrel For Oil Production wholesale

Brand Name : Zhongshi

Model Number : RWAC

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, , D/P, T/T, Western Union, D/A,

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Standard : API, ISO, QHSE

Type : RWAC

Manufacturer : Puyang Zhongshi Group

Use : Oil production

Machine type : pump,Pumping unit

Name : Sucker rod Pump RWAC

Barrel Type : Thin Wall Barrel

Payment : L/C, bank transfer

Contact Now

Simple Operation Oilfield Sucker Rods With Thin Wall Barrel For Oil Production

Product description

Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.

Technical parameter list

Specification	Pump diameter (in)	Barrel length (ft)	Plunger length (ft)	Stroke length (ft)	Extension length (ft)	Tubing size EUE(in)	Sucker rod size
20-125RWAC	Ø1.25”	+2.1-10.4	0.3-8.0	1.2-9.0	/	2-3/8”	CYJ16 CYJ19
20-150RWAC	Ø1.50”					2-3/8”
25-200RWAC	Ø2.00”					2-7/8”
30-250RWAC	Ø2.50”					3-1/2”

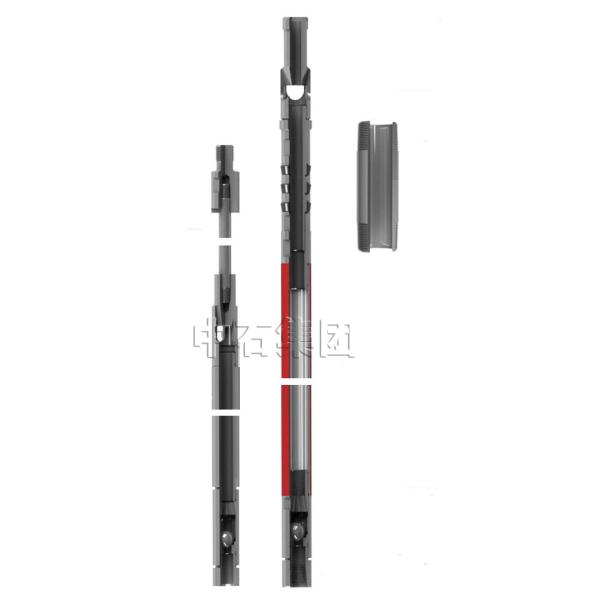

Product structure display

Simple Operation Oilfield Sucker Rods With Thin Wall Barrel For Oil Production

Feature

1. Rod pump can be pulled out from the well directly.

2. Well inspection and work over is convenient.

3. Reduce the cost of pumping test.

4. Suitable for deeper well.

Simple Operation Oilfield Sucker Rods With Thin Wall Barrel For Oil Production
